Benchtop Ion Meter 25-BIM100 is designed for accurate chloride ion concentration measurement. It provides an ion accuracy of ±0.5% F.S., ensuring consistent and highly reliable analytical results. Built-in large LCD provides clear and easy-to-read measurement display. Incorporated auto hold function allows stable readings to be frozen for easier viewing and recording. Our Benchtop Ion Meter is widely used for chloride ion analysis in potable water, distilled water, wastewater, and natural water sources.
$2,543.00 $ 2119
Specifications
| Ion Measurement Range | Cl Range: 5 × 106 - 1 M, 1.8 - 35500 ppm |
| Ion Measurement Accuracy | ± 0.5 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10, 20, 30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Features
Applications
Benchtop Ion Meter 25-BIM100 is ideal for measuring chloride ion concentration in potable water, distilled water, wastewater, and natural water sources using ion selective electrodes.
Standard Accessories

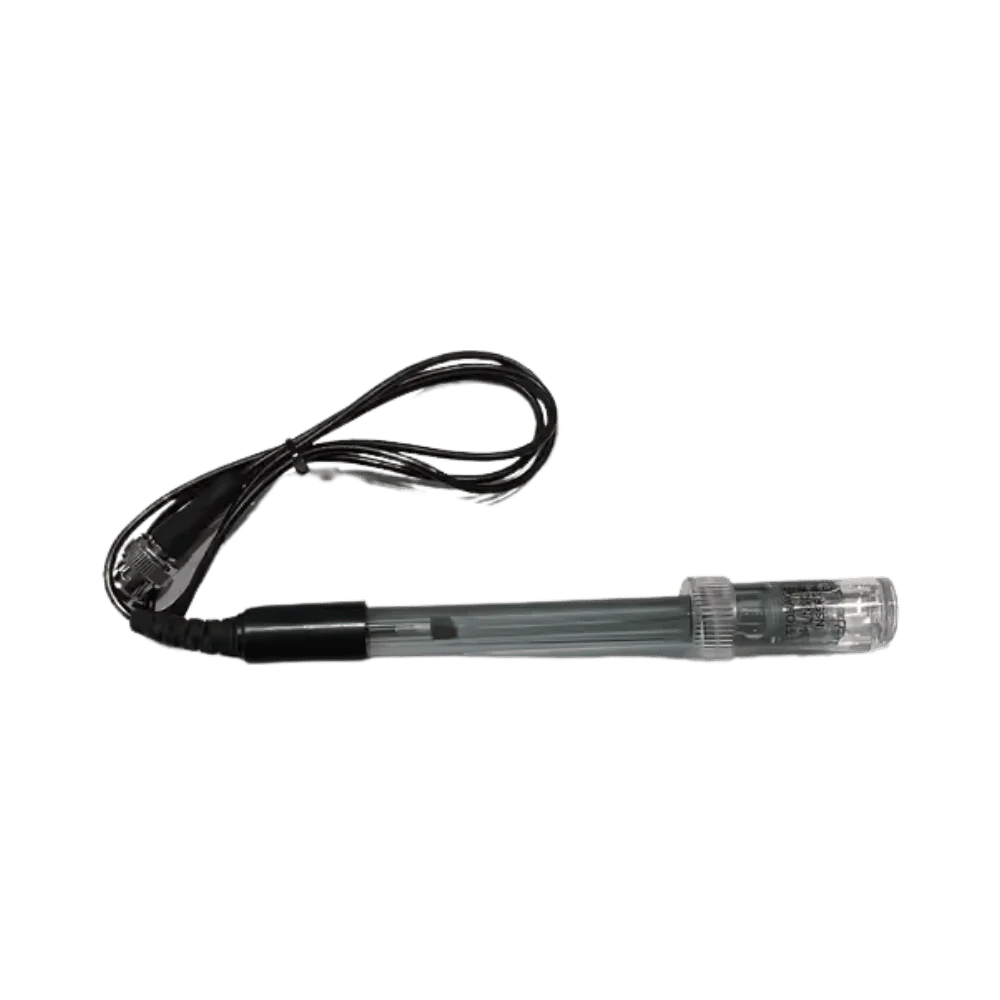

Cl chloride ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
