Benchtop Ion Meter 25-BIM101 offers accurate fluoride ion concentration measurement. It features temperature compensation to ensure accurate and consistent results across the entire testing range. Integrated calibration reminder ensures timely recalibration, supporting stable accuracy and dependable operation. Equipped with 2 to 5 calibration points, providing flexibility for accurate ion analysis. Our Benchtop Ion Meter is suitable for fluoride ion testing in drinking water, distilled water, wastewater, and various natural water bodies.
$2,515.00 $ 2096
Specifications
| Ion Measurement Range | F Range: 1 × 106M – saturation, 0.02 ppm to saturation |
| Ion Measurement Accuracy | ± 0.5 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10, 20, 30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Features
Applications
Benchtop Ion Meter 25-BIM101 is used for precise fluoride ion analysis in drinking water, distilled water, wastewater, and natural water sources with the support of ion selective electrodes.
Standard Accessories

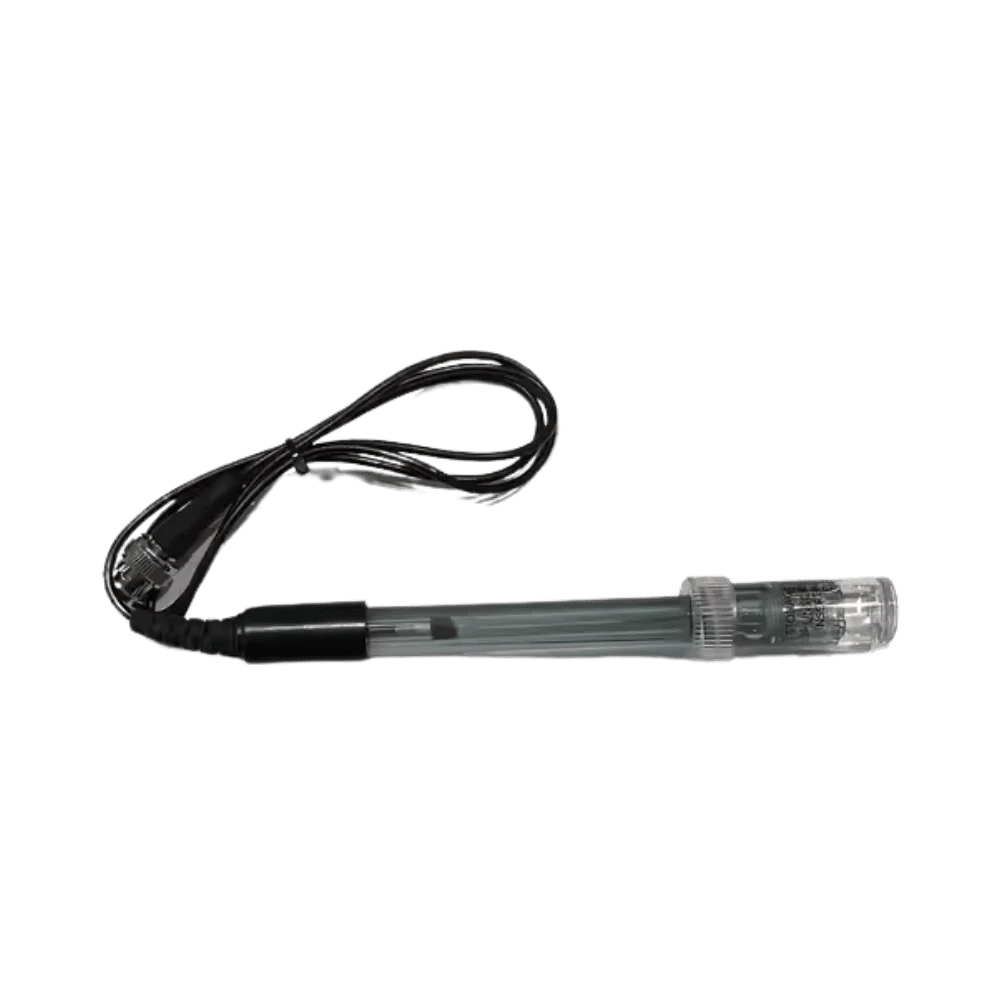

F Fluoride ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
