Benchtop Ion Meter 25-BIM103 delivers precise calcium ion concentration measurement for water quality analysis. It features a large LCD for clear and easy reading of measurement results. Incorporated auto-hold function prevents errors during readings. Built-in 2 to 5-point calibration ensures precise and consistent performance. Our Benchtop Ion Meter is ideal for calcium ion testing in drinking water, distilled water, wastewater, and other natural water sources.
$2,527.00 $ 2106
Specifications
| Ion Measurement Range | Ca Range: 5 × 107 - 1 M, 0.02 - 4000 ppm |
| Ion Measurement Accuracy | ± 0.5 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 kg |
Features
Applications
Benchtop Ion Meter 25-BIM103 is commonly used for accurate calcium ion analysis in drinking water, distilled water, wastewater, and natural water sources.
Standard Accessories

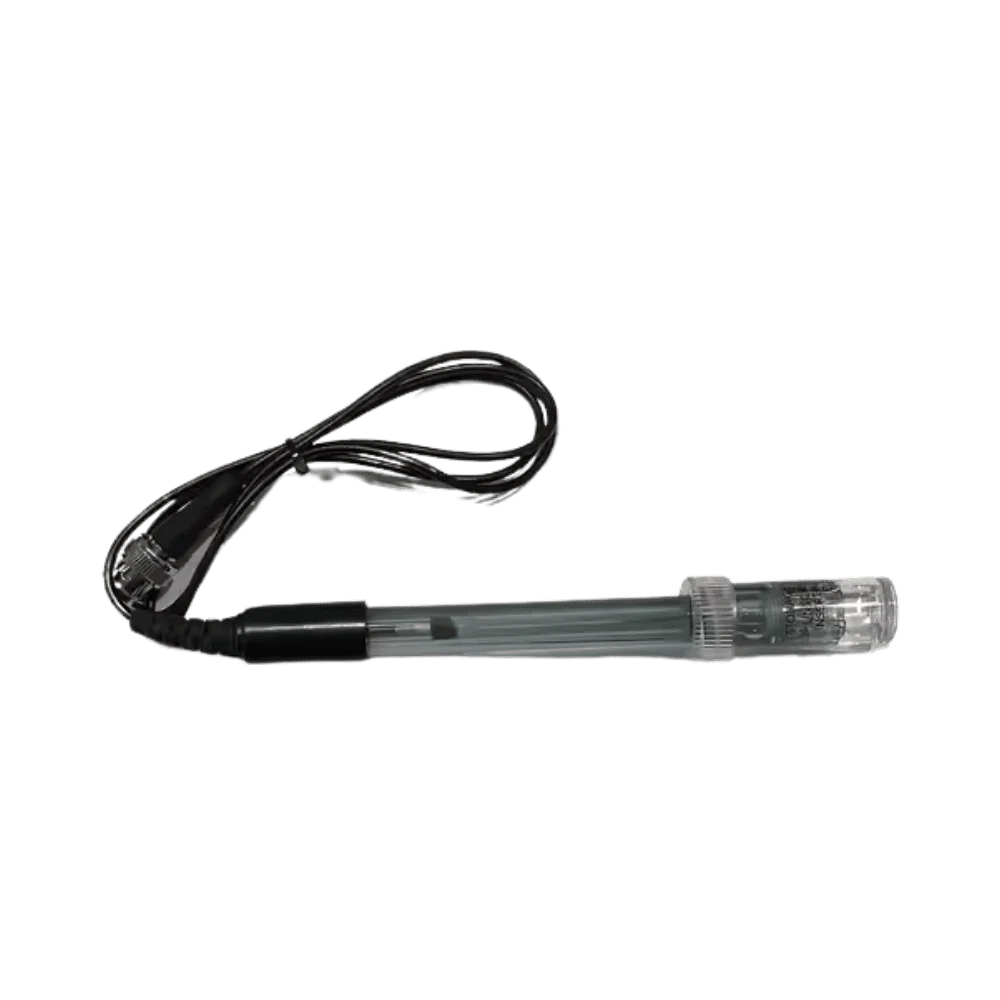

Ca Calcium ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
