Benchtop Ion Meter 25-BIM106 is designed for precise ammonia ion analysis across a wide range of water samples. It incorporates a stability indicator to display consistent readings during ion analysis. Integrated calibration points ranging from 2 to 5 for flexible standardization. Equipped with an mV accuracy of ±0.2 mV for precise readings. Our Benchtop Ion Meter is perfect for use in drinking water, distilled water, and wastewater testing.
$2,494.00 $ 2078
Specifications
| Ion Measurement Range | NH3 Range: 1 × 106 - 1 M, 0.02 - 17000 ppm |
| Ion Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Features
Applications
Benchtop Ion Meter 25-BIM106 is well-suited for ammonia ion analysis in potable water, distilled water, wastewater, and natural water sources using ion-selective electrode technology.
Standard Accessories

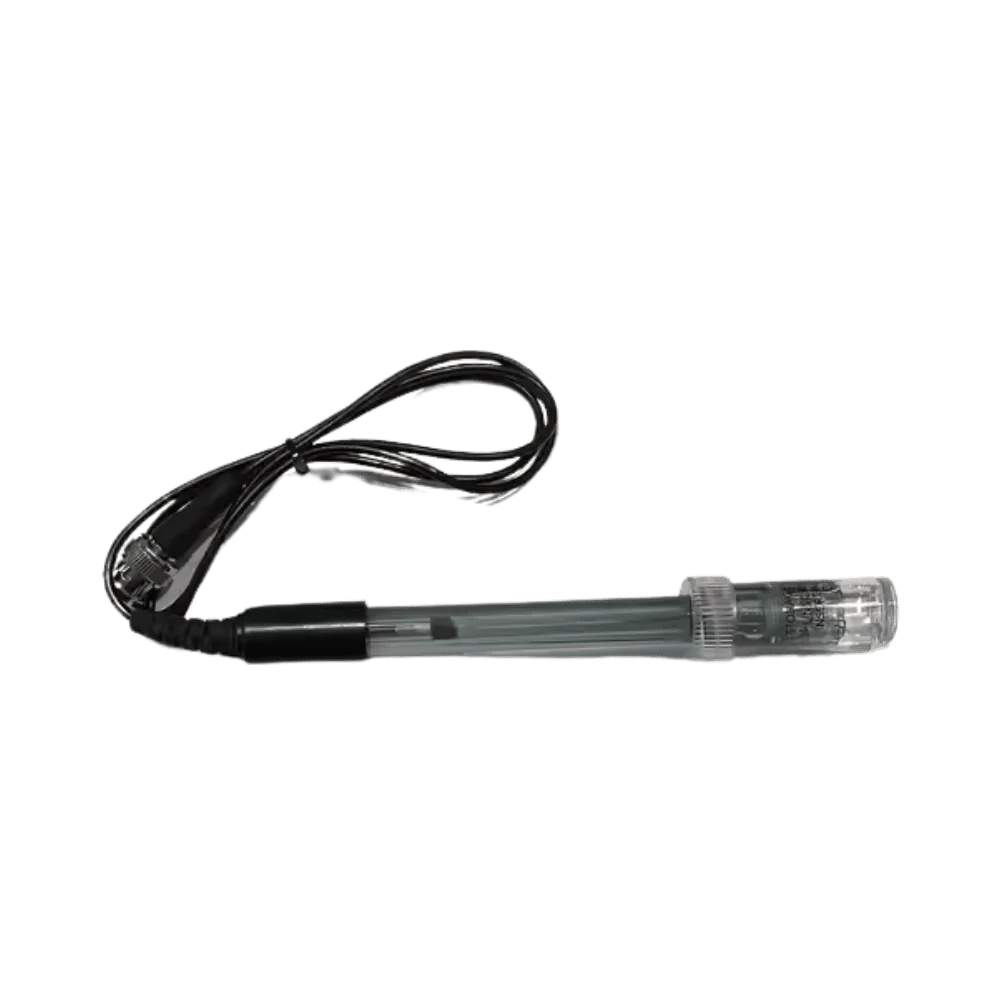

NH₃ ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter are precise ion concentration measurements using various ion selective electrodes. They have multi-point calibration for accuracy and automatic temperature compensation. This compact and durable design features a digital interface. Our Benchtop Ion meter provides reliable, accurate conductivity measurements for enhanced versatility.
